XD075Q065AY1S3 芯達茂

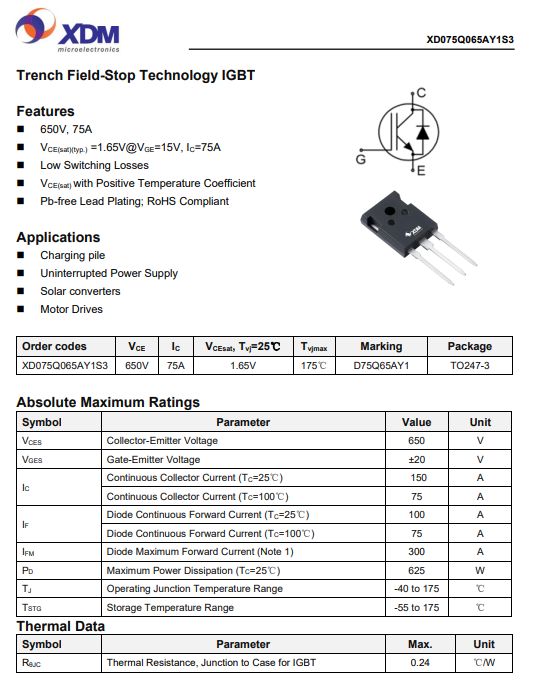

Trench Field-Stop Technology IGBT Features
? 650V, 75A
? VCE(sat)(typ.) =1.65V@VGE=15V, IC=75A
? Low Switching Losses
? VCE(sat) with Positive Temperature Coefficient
? Pb-free Lead Plating; RoHS Compliant Applications
? Charging pile
? Uninterrupted Power Supply
? Solar converters
? Motor Drives
